Average across bodies#

In multibody simulations, some nodes may be shared by the bodies at their interfaces, but the values of the results (for example stresses or strains) calculated at these nodes may differ between the bodies. This can cause discontinuous plots, given that a single node will have multiple values for a variable. To avoid this, you can average these results across the bodies of the model.

This example demonstrates how to average across bodies in DPF when dealing with Nodal variables. It also illustrates how the end results of a postprocessing workflow can be different when averaging and when not.

Note

This example requires DPF 6.1 or above. For more information, see Compatibility.

Import the necessary modules

from ansys.dpf import core as dpf
from ansys.dpf.core import operators as ops
from ansys.dpf.core import examples

Load the simulation results from an RST file and create a model of it.

analysis = examples.download_piston_rod()
model = dpf.Model(analysis)
print(model)
DPF Model
------------------------------
Static analysis
Unit system: MKS: m, kg, N, s, V, A, degC
Physics Type: Mechanical
Available results:
     -  displacement: Nodal Displacement
     -  reaction_force: Nodal Force
     -  stress: ElementalNodal Stress
     -  elemental_volume: Elemental Volume
     -  stiffness_matrix_energy: Elemental Energy-stiffness matrix
     -  artificial_hourglass_energy: Elemental Hourglass Energy
     -  thermal_dissipation_energy: Elemental thermal dissipation energy
     -  kinetic_energy: Elemental Kinetic Energy
     -  co_energy: Elemental co-energy
     -  incremental_energy: Elemental incremental energy
     -  elastic_strain: ElementalNodal Strain
     -  element_euler_angles: ElementalNodal Element Euler Angles
     -  structural_temperature: ElementalNodal Structural temperature
------------------------------
DPF  Meshed Region:
  33337 nodes
  18235 elements
  Unit: m
  With solid (3D) elements
------------------------------
DPF  Time/Freq Support:
  Number of sets: 3
Cumulative     Time (s)       LoadStep       Substep
1              1.000000       1              1
2              2.000000       2              1
3              3.000000       3              1

To visualize the model and see how the bodies are connected, extract their individual meshes using the split_mesh operator with the mat (or “material”) property.

mesh = model.metadata.meshed_region
split_mesh_op = ops.mesh.split_mesh(mesh=mesh, property="mat")
meshes = split_mesh_op.outputs.meshes()

meshes.plot(text="Body meshes")
01 average across bodies

As can be seen in the preceding image, even though the piston rod is one single part, it is composed of two different bodies. Additionally, their interface shares common nodes.

Averaging across bodies with DPF#

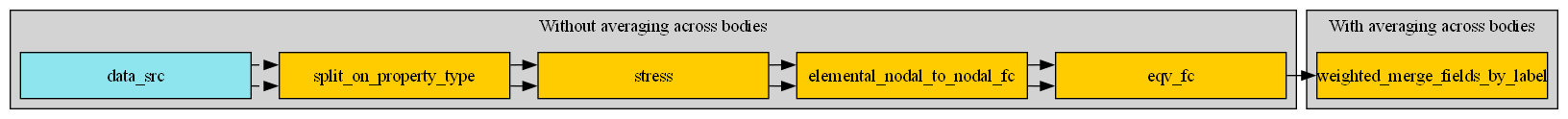

# To compare the results of averaging across bodies and not averaging, define two workflows. The variable of interest is the Von Mises stress field, which is calculated by applying the eqv_fc operator on the stresses extracted from the model.

Workflow for not averaging across bodies#

Computing Von Mises stresses without averaging across the bodies of the model requires the stresses to be extracted separately for each body. To do this in DPF, pass a scopings container the stress operator that contains the elements of each body in scopings, separated by the mat label

split_scop_op = ops.scoping.split_on_property_type()
split_scop_op.inputs.mesh.connect(mesh)
split_scop_op.inputs.requested_location.connect(dpf.locations.elemental)
split_scop_op.inputs.label1.connect("mat")

print(split_scop_op.outputs.mesh_scoping())
DPF  Scopings Container
  with 2 scoping(s)
  defined on labels: mat

  with:
  - scoping 0 {mat:  1, } located on Elemental 9026 entities.
  - scoping 1 {mat:  2, } located on Elemental 9209 entities.

Set the time set of interest to the last time set:

time_set = 3

Extracting the stresses for each body of the simulation:

stress_op = ops.result.stress()
stress_op.inputs.time_scoping.connect(time_set)
stress_op.inputs.data_sources.connect(model)
stress_op.inputs.mesh_scoping.connect(split_scop_op)
stress_op.inputs.requested_location.connect(dpf.locations.elemental_nodal)

Proceeding with the workflow to obtain Nodal Von Mises stresses:

eln_to_n_op = ops.averaging.elemental_nodal_to_nodal_fc()
eln_to_n_op.inputs.fields_container.connect(stress_op)

von_mises_op = ops.invariant.von_mises_eqv_fc()
von_mises_op.inputs.fields_container.connect(eln_to_n_op)

print(von_mises_op.outputs.fields_container())
DPF stress(s)Fields Container
  with 2 field(s)
  defined on labels: mat time

  with:
  - field 0 {mat:  1, time:  3} with Nodal location, 1 components and 17281 entities.
  - field 1 {mat:  2, time:  3} with Nodal location, 1 components and 17610 entities.

As you can see, the final Von Mises stresses fields container has the mat label with two different entries, meaning that it holds data for two separate bodies. Finally, define this workflow as a function for better organization and ease of use:

def not_average_across_bodies(analysis):
    # This function extracts the ElementalNodal stress tensors of the simulation
    # for each body involved, averages them to the nodes and computes Von Mises

    model = dpf.Model(analysis)
    mesh = model.metadata.meshed_region

    time_set = 3

    split_scop_op = ops.scoping.split_on_property_type()
    split_scop_op.inputs.mesh.connect(mesh)
    split_scop_op.inputs.requested_location.connect(dpf.locations.elemental)
    split_scop_op.inputs.label1.connect("mat")

    stress_op = ops.result.stress()
    stress_op.inputs.time_scoping.connect(time_set)
    stress_op.inputs.data_sources.connect(model)
    stress_op.inputs.mesh_scoping.connect(split_scop_op)
    stress_op.inputs.requested_location.connect(dpf.locations.elemental_nodal)

    eln_to_n_op = ops.averaging.elemental_nodal_to_nodal_fc()
    eln_to_n_op.inputs.fields_container.connect(stress_op)

    von_mises_op = ops.invariant.von_mises_eqv_fc()
    von_mises_op.inputs.fields_container.connect(eln_to_n_op)

    vm_stresses = von_mises_op.outputs.fields_container()

    return vm_stresses

Workflow for averaging across bodies#

The workflow for performing averaging across bodies in DPF is similar to to the one shown above, with the extraction of stresses per body. The difference comes in the end, where a weighted merge is done between the fields that contain different values for the mat label to actually average the results across the bodies. Define a function like the one above:

def average_across_bodies(analysis):
    # This function extracts the ElementalNodal stress tensors of the simulation
    # for each body involved, averages them to the nodes and computes Von Mises

    model = dpf.Model(analysis)
    mesh = model.metadata.meshed_region

    time_set = 3

    split_scop_op = ops.scoping.split_on_property_type()
    split_scop_op.inputs.mesh.connect(mesh)
    split_scop_op.inputs.requested_location.connect(dpf.locations.elemental)
    split_scop_op.inputs.label1.connect("mat")

    stress_op = ops.result.stress()
    stress_op.inputs.time_scoping.connect(time_set)
    stress_op.inputs.data_sources.connect(model)
    stress_op.inputs.mesh_scoping.connect(split_scop_op)
    stress_op.inputs.requested_location.connect(dpf.locations.elemental_nodal)

    eln_to_n_op = ops.averaging.elemental_nodal_to_nodal_fc()
    eln_to_n_op.inputs.fields_container.connect(stress_op)
    # Mid node weights needed for averaging across bodies
    eln_to_n_op.inputs.extend_weights_to_mid_nodes.connect(True)

    von_mises_op = ops.invariant.von_mises_eqv_fc()
    von_mises_op.inputs.fields_container.connect(eln_to_n_op)

    # Merging fields that represent different bodies
    merge_op = ops.utility.weighted_merge_fields_by_label()
    merge_op.inputs.fields_container.connect(von_mises_op)
    merge_op.inputs.label.connect("mat")
    # Connecting weights needed to perform the weighted average
    merge_op.connect(1000, eln_to_n_op, 1)

    vm_stresses = merge_op.outputs.fields_container()

    return vm_stresses

In this case, we can see that the output fields container only has one field, indicating that the results of the two different bodies were averaged successfully.

print(average_across_bodies(analysis))
DPF  Fields Container
  with 1 field(s)
  defined on labels: time

  with:
  - field 0 {time:  3} with Nodal location, 1 components and 33337 entities.

Plot and compare the results#

The two different approaches can be compared. The first plot shows the results when averaging across bodies is not performed, while the second illustrates when it is.

non_avg_stresses = not_average_across_bodies(analysis)
avg_stresses = average_across_bodies(analysis)

meshes.plot(non_avg_stresses)
mesh.plot(avg_stresses)
  • 01 average across bodies
  • 01 average across bodies

Finally, the maximum stresses for both cases can be compared:

min_max = dpf.operators.min_max.min_max_fc()

# Non averaged across bodies
min_max.inputs.fields_container.connect(non_avg_stresses)
max_non_avg = max(min_max.outputs.field_max().data)

# Averaged across bodies
min_max.inputs.fields_container.connect(avg_stresses)
max_avg = max(min_max.outputs.field_max().data)


diff = abs(max_avg - max_non_avg) / max_non_avg * 100
print("Max stress when averaging across bodies is activated: {:.2f} Pa".format(max_avg))
print("Max stress when averaging across bodies is deactivated: {:.2f} Pa".format(max_non_avg))
print(
    "The maximum stress value when averaging across bodies is PERFORMED \
is {:.2f}% LOWER than when it is NOT PERFORMED".format(
        diff
    )
)
Max stress when averaging across bodies is activated: 10786714384.57 Pa
Max stress when averaging across bodies is deactivated: 10796069601.08 Pa
The maximum stress value when averaging across bodies is PERFORMED is 0.09% LOWER than when it is NOT PERFORMED

Dedicated Operator#

Note

The operator detailed below is available in Ansys 23R2 and later versions.

Alternatively, those workflows can be automatically instantiated by calling the stress_eqv_as_mechanical operator, which does exactly the same thing as described in the functions above, depending on what is passed to the “average_across_bodies” input pin:

stress_op = ops.result.stress_eqv_as_mechanical()
stress_op.inputs.time_scoping.connect([time_set])
stress_op.inputs.data_sources.connect(model)
stress_op.inputs.requested_location.connect(dpf.locations.nodal)
stress_op.inputs.average_across_bodies.connect(False)

print(stress_op.outputs.fields_container())
DPF stress(s)Fields Container
  with 2 field(s)
  defined on labels: mat time

  with:
  - field 0 {mat:  1, time:  3} with Nodal location, 1 components and 17281 entities.
  - field 1 {mat:  2, time:  3} with Nodal location, 1 components and 17610 entities.

Total running time of the script: (0 minutes 13.555 seconds)
