Convert DPF data to PyVista objects

Convert DPF meshes and fields to PyVista UnstructuredGrid objects for in-memory manipulation and custom visualization.

Unlike the VTU export operators, which write files to disk, the vtk_helper module works entirely in memory: it converts |MeshedRegion|, |Field|, |FieldsContainer|, and |PropertyField| objects to pyvista.UnstructuredGrid objects that you can plot, filter, combine, or save to any format that PyVista supports.

This tutorial demonstrates how to convert a mesh, validate it, enrich it with multiple fields incrementally, and batch-convert all time steps of a transient result at once.

Import required modules

Import the required modules and the helper functions from vtk_helper.

from ansys.dpf import core as dpf
from ansys.dpf.core import examples
from ansys.dpf.core.vtk_helper import (
    append_field_to_grid,
    dpf_field_to_vtk,
    dpf_fieldscontainer_to_vtk,
    dpf_mesh_to_vtk,
    vtk_mesh_is_valid,
)

Load the result file

Load a static structural result file and extract the |MeshedRegion| and |Model| that are reused throughout the first part of this tutorial.

# Find and load the static structural result file
result_file = examples.find_static_rst()

# Create a DataSources object
ds = dpf.DataSources(result_path=result_file)

# Create a Model for result access
my_model = dpf.Model(data_sources=ds)

# Get the MeshedRegion
mesh = my_model.metadata.meshed_region

Convert a mesh to a PyVista grid

Use dpf_mesh_to_vtk to convert a |MeshedRegion| to a pyvista.UnstructuredGrid. The resulting object contains only the geometry (nodes and connectivity); no field data is attached yet.

# Convert the MeshedRegion to a PyVista UnstructuredGrid
grid = dpf_mesh_to_vtk(mesh=mesh)
print(grid)

UnstructuredGrid (0x13b81df0520)
  N Cells:    8
  N Points:   81
  X Bounds:   0.000e+00, 3.000e-02
  Y Bounds:   3.000e-02, 6.000e-02
  Z Bounds:   0.000e+00, 3.000e-02
  N Arrays:   0

Validate the mesh

Use vtk_mesh_is_valid to check whether the converted grid passes VTK’s built-in cell validator. For a valid mesh it prints a confirmation; for an invalid one it lists the elements that fail each geometric check.

# Run the cell validity check and print the result
validity = vtk_mesh_is_valid(grid=grid, verbose=True)

Mesh is valid.

Convert a field to a PyVista grid

Use dpf_field_to_vtk to convert a displacement |Field| and its associated mesh in a single call. Nodal data is automatically stored in grid.point_data; elemental data goes into grid.cell_data. Elemental-nodal data is not supported by VTK objects.

# Extract the displacement FieldsContainer and get the first time step
disp_fc = my_model.results.displacement.eval()
disp_field = disp_fc[0]

# Convert the Field and its mesh to a single UnstructuredGrid
disp_grid = dpf_field_to_vtk(field=disp_field, field_name="displacement")
print(disp_grid.point_data)

pyvista DataSetAttributes
Association     : POINT
Active Scalars  : displacement
Active Vectors  : None
Active Texture  : None
Active Normals  : None
Contains arrays :
    displacement            float64    (81, 3)              SCALARS

Visualize the displacement magnitude

Use the DPF norm operator to compute the Euclidean norm of the displacement vector at each node, then append the resulting scalar |Field| to the grid and plot it.

# Compute the displacement magnitude using the DPF norm operator
norm_field = dpf.operators.math.norm(field=disp_field).eval()

# Append the scalar magnitude field to the displacement grid
disp_grid = append_field_to_grid(
    field=norm_field, meshed_region=mesh, grid=disp_grid, field_name="displacement_magnitude"
)

# Plot the magnitude on the mesh

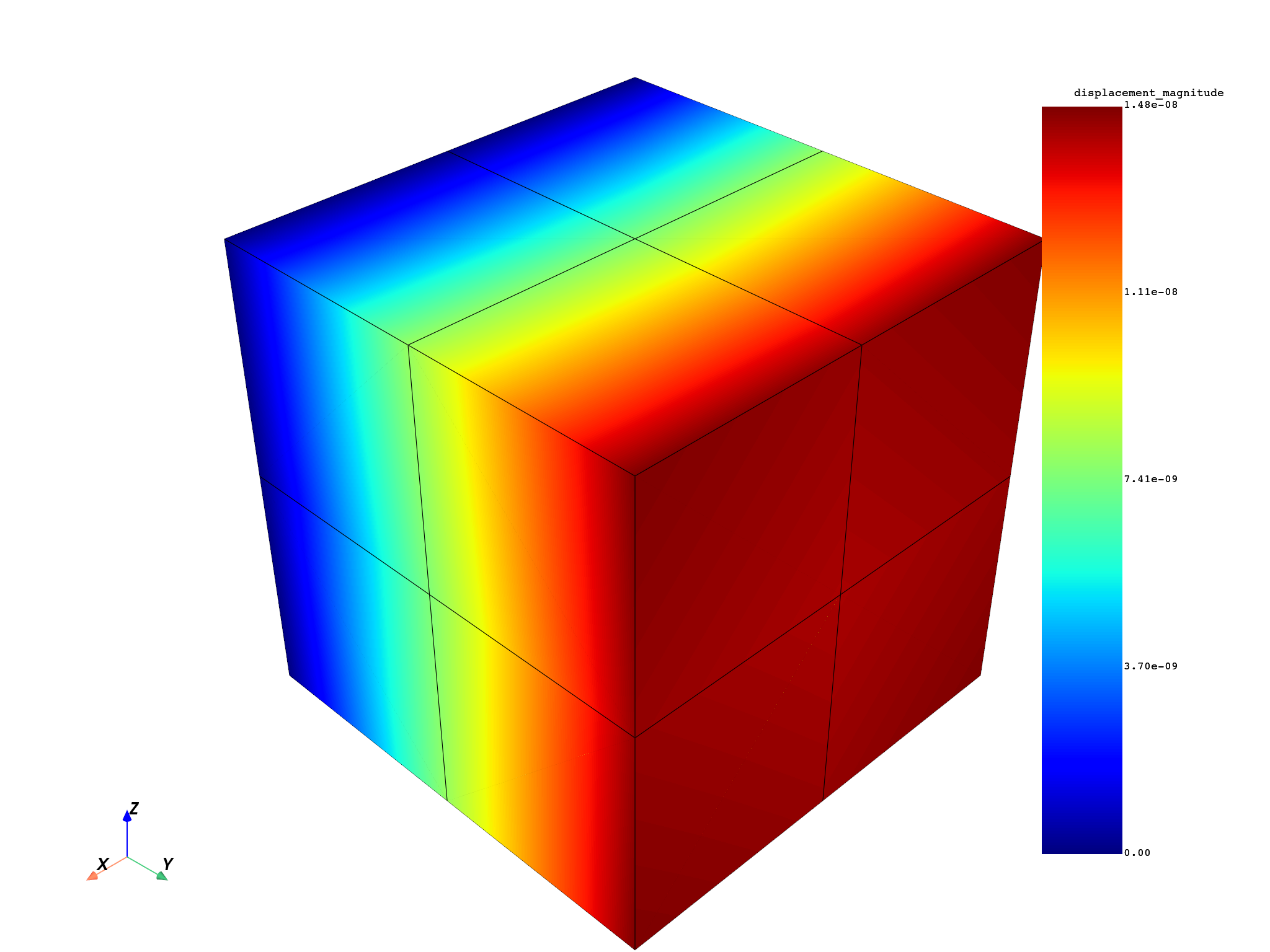

disp_grid.plot(scalars="displacement_magnitude", show_edges=True)

Build a grid incrementally with multiple fields

Use append_field_to_grid to enrich an existing grid with additional field data. This approach is useful when you want to attach several results to the same UnstructuredGrid — for example nodal and elemental quantities together.

# Create a bare grid from the MeshedRegion
rich_grid = dpf_mesh_to_vtk(mesh=mesh)

# Append the displacement field (nodal location — stored in point_data)
rich_grid = append_field_to_grid(
    field=disp_field, meshed_region=mesh, grid=rich_grid, field_name="displacement"
)

# Append the element-type property field (elemental location — stored in cell_data)
eltype_pf = mesh.property_field(property_name="eltype")
rich_grid = append_field_to_grid(
    field=eltype_pf, meshed_region=mesh, grid=rich_grid, field_name="element_type"
)

# Inspect the resulting data arrays on the grid
print("Nodal arrays:    ", list(rich_grid.point_data.keys()))
print("Elemental arrays:", list(rich_grid.cell_data.keys()))

Nodal arrays:     ['displacement']
Elemental arrays: ['element_type']

Convert all time steps of a FieldsContainer

Use dpf_fieldscontainer_to_vtk to convert every |Field| in a |FieldsContainer| to a single UnstructuredGrid. Each time step becomes a separate data array keyed by its label space, so all time steps are accessible from the same object.

# Load a transient result file with multiple time steps
transient_result = examples.download_transient_result()
trans_ds = dpf.DataSources(result_path=transient_result)
trans_model = dpf.Model(data_sources=trans_ds)

# Extract displacement for all time steps
all_disp_fc = trans_model.results.displacement.on_all_time_freqs.eval()

# Convert the entire FieldsContainer to a single UnstructuredGrid
fc_grid = dpf_fieldscontainer_to_vtk(fields_container=all_disp_fc, field_name="displacement")

# Each time step is stored as a separate point-data array
print(f"Number of time-step arrays: {len(fc_grid.point_data)}")
print("Array names (first 3):", list(fc_grid.point_data.keys())[:3])

Number of time-step arrays: 35
Array names (first 3): ["displacement {'time': 1}", "displacement {'time': 2}", "displacement {'time': 3}"]
